JetKVM Mini

JetKVM Mini is a smaller sized, more inexpensive JetKVM. It can be found in 2 designs: JetKVM Mini with Ethernet for $39 and JetKVM Mini Wcordless, for $42In packs of 3, they end up being much more budget friendly and drop to $33 and $36 per system.

The case is aluminium, 42 × 42 × 23 mm (1.7 × 1.7 × 0.9 in), about the footprint of a matchbox. It does what a JetKVM does: native video capture at 1080p (approximately 4K with JetKVM OS Services), keyboard and mouse over USB, the very same web user interface, the exact same cloud, the very same updates.

Technology Wired or cordless

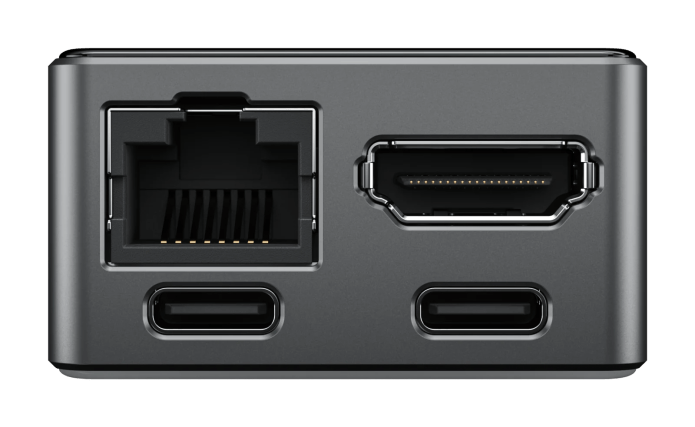

JetKVM Mini has an RJ45 port. Plug in Ethernet, video, and the USB cable television to the target computer system, checked out the IP address off the display screen, and open it in a web browser. Setup is the exact same as on every JetKVM.

JetKVM Mini W drops the RJ45 for a 2.4 and 5 GHz radio. It is for makers a cable television does not reach: a PC in another space, a box under the television, a rack without any totally free switch ports. Video and USB are the only cable televisions. Setup occurs over Bluetooth from an internet browser on your phone or laptop computer: choose a network, go into the password, and the Mini W joins it.

JetKVM Mini · Ethernet

JetKVM Mini W · Wireless

Technology Why a Mini

We desired a JetKVM cost effective sufficient to place on every maker, and arriving suggested beginning over. The Mini isn’t a stripped-down JetKVM. It’s a JetKVM re-engineered around the important things a KVM requires to do well: capture video, control keyboard and mouse, install virtual media, and remain obtainable when the maker it handles is not.

The outcome is a much easier architecture: an ESP32-P4X manages video capture, H. 264 encoding, USB, and the JetKVM firmware without the different DRAM and eMMC needed by a Linux system. Around it, we constructed a compact aluminium enclosure, an easy status display screen with physical controls, and the exact same web user interface, cloud, extensions, and upgrade system as JetKVM.

It gets the job done of a JetKVM, in a smaller sized style that begins at$33.

Technology The hardware

The Mini works on an ESP32-P4Xa microcontroller with a hardware H. 264 encoder. Video is caught at 1080p at 30 fps or 720p at 60 fps, encoded on the chip, and streamed over WebRTC to your internet browser. The Mini W includes an ESP32-C5 for cordless. It has IEEE 802.11 a/b/g/ n/ac/ax on 2.4 and 5 GHz for networking, Bluetooth LE for setup, and IEEE 802.15.4 for Zigbee and Thread.

The Mini has 2 USB ports. One goes to the target computer system: it performs at USB 2.0 High Speed (480 Mbps), provides keyboard, mouse, and virtual media to the device, and draws power from it. Virtual media runs a TF Card in the slot on the side– drop in your own card and load it with the ISOs you require.

The other is a general-purpose USB port. It performs at USB 2.0 Full Speed (12 Mbps) and can likewise work as a backup or secondary power input. It is where our extensions link: we’re revamping the ATX, DC power, and serial extensions to utilize basic USB, with brand-new variations can be found in a later release. With an external power supply, the port can even run as a USB host, opening it approximately basically any USB gadget you pick to support in your own firmware.

Technology The software application

We reworded the firmware for the ESP32-P4Xand it will be open source from the first day. It speaks the exact same procedures, so the web user interface and the cloud rollover the same.

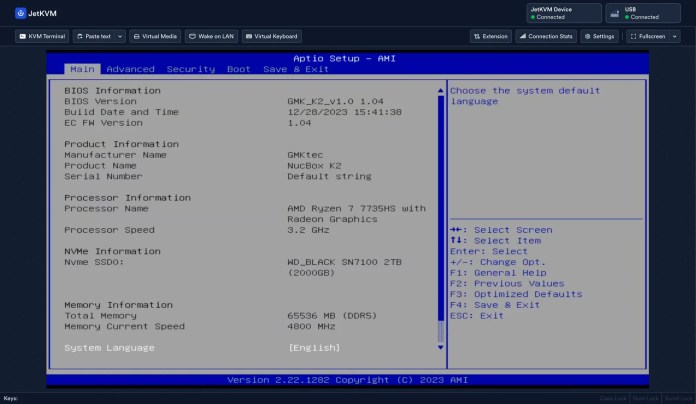

That suggests the user interface you currently understand: keyboard and mouse control, text paste, keyboard designs, virtual media from an ISO on the TF Card, JetKVM Cloud for gain access to from outdoors your network, Wake-on-LAN, MQTT and Home Assistant, OIDC login, and over-the-air updates with automated rollback.

It likewise gets JetKVM OS Services. The OS service for the maker your KVM is plugged into comes out in the next couple of weeks, and it supports the Mini from the first day. It records the target computer system’s screen at approximately 4K, and includes a shared clipboard, a guest terminal, and file transfer. Find out more.

MSRP in USD.
